SHR40P Handrail

SHR40P Handrail
Magnifying lens Click on image to enlarge



Gradus SHR40 handrails provide pedestrian guidance and support in addition to a level of surface protection and have been designed to meet guidance for handrail dimensions in relation to grip diameter, distance from the wall and bracket clearance. They are suitable for use in a wide range of environments including healthcare, education, commercial office and transport.

The SHR40P option of this handrail comprises an aluminium retainer, PVC-u cover, anodised aluminium brackets and PVC-u accessories including returns, inside and outside corners, variable angle and end stops. The PVC-u accessories are supplied with black reveals in an anti-bacterial finish to provide neat, smooth joints.

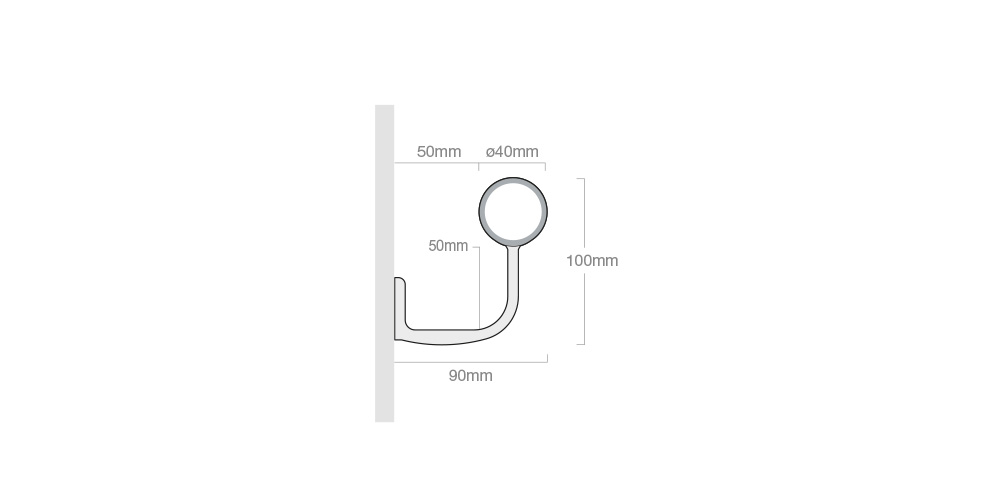

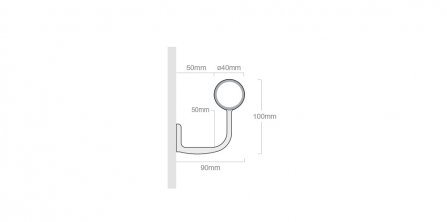

The SHR40P features a 40mm diameter handrail and offers a smooth, comfortable grip in line with guidance in HBN 00-04, HBN 00-10, BS8300:2009+A1:2010 and Approved Documents K & M of The Building Regulations 2010.

PVC-u covers and accessories are available in 32 colour options and are through-coloured to conceal the effects of impact and abrasion.

Gradus BIM LogoBIM objects provide up-to-date, accurate data about products. Gradus SHR40P handrail is available as a BIM object - click here to download.

Note: Handrails need to be easily identified and located for support and wayfinding and should be selected in a colour that has a Light Reflectance Value (LRV) that is 30 points different from the surrounding surface. All Gradus handrail colours have been measured to provide LRVs in order to provide the specifier with the information required to ensure a suitable visual contrast is achieved.

Colours

  • 001 Chalk
  • 002 Gravel
  • 003 Clay
  • 004 Granite
  • 005 Shale
  • 006 Ivory
  • 007 Wicker
  • 008 Sand
  • 009 Sienna
  • 010 Bark
  • 011 Pebble
  • 013 Greige
  • 014 Cinnamon
  • 015 Lavender Grey
  • 016 Glacier
  • 017 Bluebell
  • 018 Azure
  • 019 Ultramarine
  • 020 Denim
  • 021 Straw
  • 022 Apricot
  • 023 Meadow
  • 024 Bamboo
  • 025 Emerald
  • 027 Melon
  • 028 Poppy
  • 029 Garnet
  • 030 Iris
  • 031 Alum
  • 032 Flint
  • 033 Slate
  • 035 Hessian
Magnifying lens Click on colour to enlarge
