SHR40S Handrail

SHR40S Handrail
Magnifying lens Click on image to enlarge


Gradus SHR40 handrails provide pedestrian guidance and support in addition to a level of surface protection and have been designed to meet guidance for handrail dimensions in relation to grip diameter, distance from the wall and bracket clearance. They are suitable for use in a wide range of environments including healthcare, education, commercial office and transport.

The SHR40S option of this handrail comprises a Silver Anodised aluminium handrail, anodised aluminium brackets and PVC-u accessories including returns, inside and outside corners, variable angle and end stops. The PVC-u accessories are available in 32 colour options (Gradus recommends using Flint 032, Pebble 011 or Granite 004 - as shown below or see SHR40P for full range) and are supplied with black reveals in an anti-bacterial finish to provide neat, smooth joints.

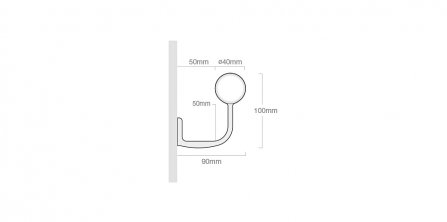

The SHR40S features a 40mm diameter handrail and offers a smooth, comfortable grip in line with guidance in HBN 00-04, HBN 00-10, BS 8300-2:2018 and Approved Documents K & M of The Building Regulations 2010.

Gradus BIM LogoBIM objects provide up-to-date, accurate data about products. Gradus SHR40S handrail is available as a BIM object - click here to download.


  • Silver Anodised Aluminium
  • 011 Pebble
  • 032 Flint
  • 004 Granite
Magnifying lens Click on colour to enlarge
Add to My Design Board / Order Samples
