SHR40W Handrail

SHR40W Handrail
Magnifying lens Click on image to enlarge



Gradus SHR40 handrails provide pedestrian guidance and support in addition to a level of surface protection and have been designed to meet guidance for handrail dimensions in relation to grip diameter, distance from the wall and bracket clearance. They are suitable for use in a wide range of environments including healthcare, education, commercial office and transport.

The SHR40W option of this handrail comprises an aluminium retainer with a Wood effect finish, anodised aluminium brackets and PVC-u accessories including returns, inside and outside corners, variable angle and end stops.The PVC-u accessories are supplied with black reveals in an anti-bacterial finish to provide neat, smooth joints.

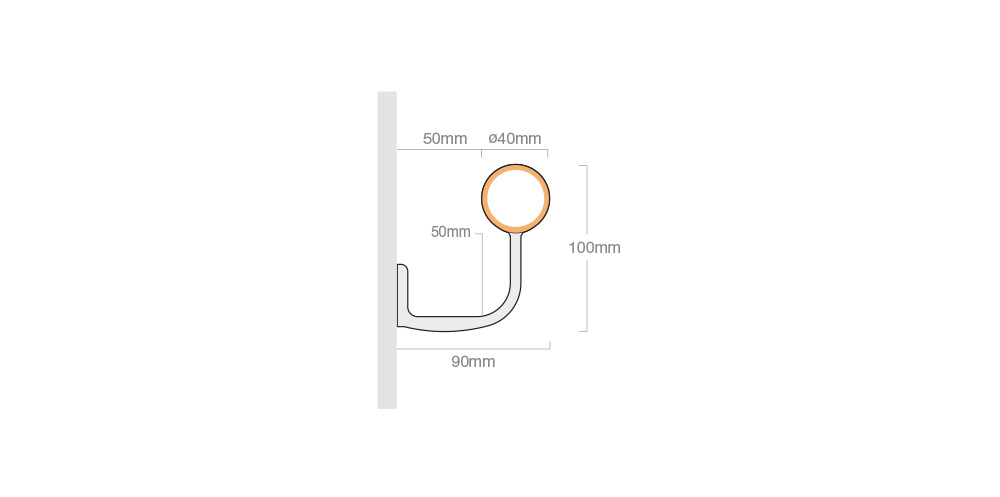

The SHR40W features a 40mm diameter handrail and offers a smooth, comfortable grip in line with guidance in HBN 00-04, HBN 00-10, BS8300:2009+A1:2010 and Approved Documents K & M of The Building Regulations 2010.

The SHR40W handrail is available in 5 Wood effects and is supplied with PVC-u accessories in 32 colour options (see SHR40P for full range). Gradus recommends the use of Flint 032, Pebble 011 or Granite 004 (see below).

Gradus BIM LogoBIM objects provide accurate, up-to-date product data. Gradus SHR40W is available as a BIM object - click here to download.

Note: Handrails need to be easily identified and located for support and wayfinding and should be selected in a colour that has a Light Reflectance Value (LRV) that is 30 points different from the surrounding surface. All Gradus handrail colours have been measured to provide LRVs in order to provide the specifier with the information required to ensure a suitable visual contrast is achieved.

Colours

  • 060 Maple
  • 061 Beech
  • 062 Light Oak
  • 065 Stripped Pine
  • 067 Wenge
  • 011 Pebble
  • 032 Flint
  • 004 Granite
Magnifying lens Click on colour to enlarge
Add to My Design Board / Order Samples
