D200P Dual Rail

D200P Dual Rail
Magnifying lens Click on image to enlarge



AVAILABLE JANUARY 2018

Gradus D200 Dual Rails provide the ideal solution where both a handrail and wall guard are required as a combined system.  They have been designed to meet the specific needs of healthcare environments where pedestrian support is required in addition to protection against impact from wheeled traffic.

All options are designed to meet the guidance in HBN 00-10 and HBN 00-04 (Department of Health Estates & Facilities), BS8300:1009+A1:2010 and Approved Documents K and M of The Building Regulations.

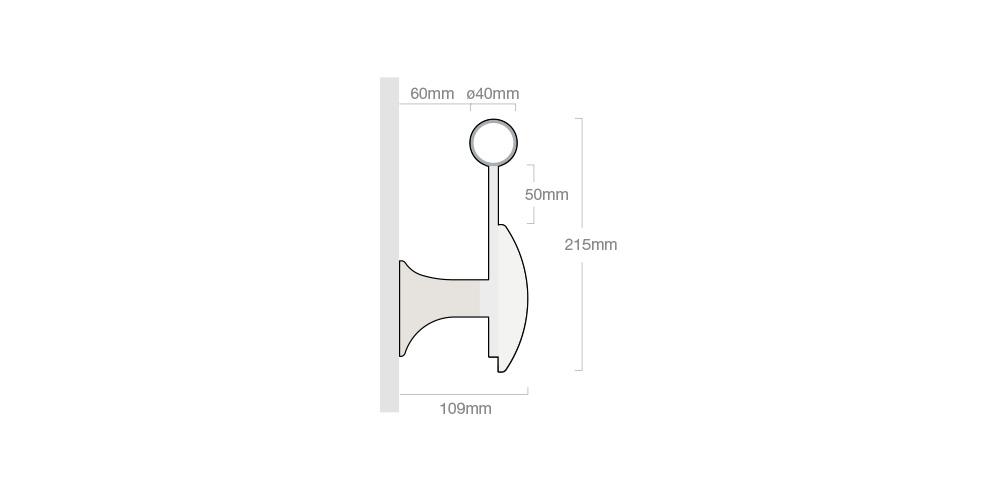

The D200P option of Dual Rail combines a PVC-u handrail with a PVC-u wall guard linked together with a specialist bracket to meet guidance for handrail dimensions in relation to grip diameter, distance from the wall and bracket clearance. The handrail element features a 40mm diameter and is smooth for a comfortable grip whilst the wall guard element is textured to conceal the effects of impact and abrasion.

Both the handrail and wall guard elements are modular in design with aluminium retainers, PVC-u covers and PVC-u accessories including returns and inside and outside corners. The PVC-u accessories are supplied with black reveals in an anti-bacterial finish to provide neat, smooth joints.

The PVC-u covers and accessories for both the handrail and wall guard elements are available in 32 colour options and are through-coloured to minimise the visual appearance of damage.

Gradus BIM LogoGradus BIM objects provide up-to-date, accurate data about products. The Gradus D200P Dual Rail is available to download as a BIM objects - click here.

Note: Handrails need to be easily identified and located for support and wayfinding and should be selected in a colour that has a Light Reflectance Value (LRV) that is 30 points different from the surrounding surface. All Gradus handrail colours have been measured to provide LRVs in order to provide the specifier with the information required to ensure a suitable visual contrast is achieved. Dual Rail should be specified in 2 colours with the handrail element contrasting with the surrounding wall surface and the wall guard blending with the wall finish.

Colours

  • 001 Chalk
  • 002 Gravel
  • 003 Clay
  • 004 Granite
  • 005 Shale
  • 006 Ivory
  • 007 Wicker
  • 008 Sand
  • 009 Sienna
  • 010 Bark
  • 011 Pebble
  • 013 Greige
  • 014 Cinnamon
  • 015 Lavender Grey
  • 016 Glacier
  • 017 Bluebell
  • 018 Azure
  • 019 Ultramarine
  • 020 Denim
  • 021 Straw
  • 022 Apricot
  • 023 Meadow
  • 024 Bamboo
  • 025 Emerald
  • 027 Melon
  • 028 Poppy
  • 029 Garnet
  • 030 Iris
  • 031 Alum
  • 032 Flint
  • 033 Slate
  • 035 Hessian
Magnifying lens Click on colour to enlarge
Add to My Design Board / Order Samples
