Elite Aluminium

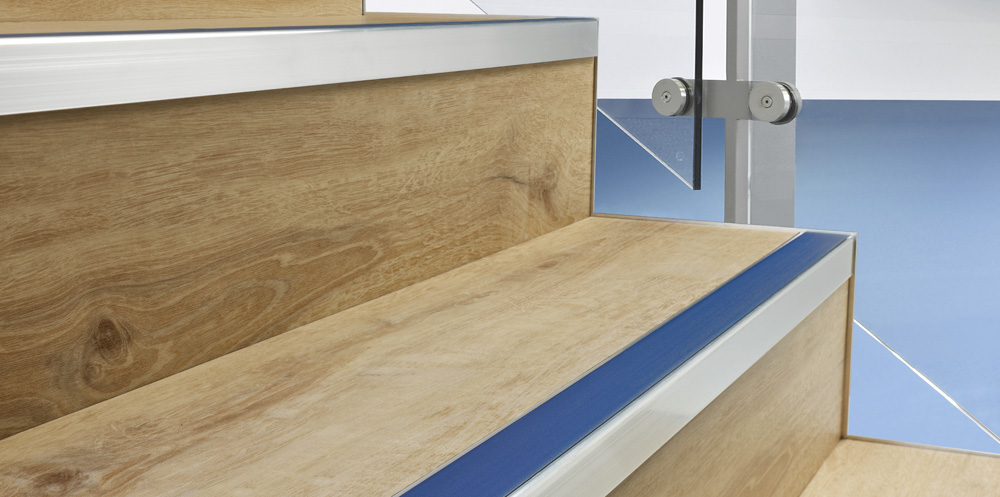

The Elite aluminium range offers an extensive range of attractive and hardwearing stair edgings (stair nosings) comprising aluminium channels with slip-resistant inserts.

The Gradus Elite stair edging system allows the aluminium channel to be fixed to the step first, with the insert fitted once the channel has been secured. This offers a concealed fixing and eliminates the need for screw head cover plugs.

Elite stair edgings are available with Interior insert in a choice of 17 standard colours in order to provide visual contrast with the surrounding floorcoverings.

Elite aluminium stair edgings are used in conjunction with floorcoverings from all major manufacturers, and are suitable for all commercial applications.

Stair edgings (nosings) help to achieve an inclusive environment in line with the latest legislation and guidelines such as Approved Document M of The Building Regulations 2010 and BS 8300-2:2018.

Have you considered our New XT Aluminium range?

XT Icon

Featuring an extended insert design that provides maximum safety underfoot and a unique insert locking mechanism for improved performance, our XT range is The Ultimate Stair Edging solution for reducing the risk of slips, trips and falls on stairs.

 Click HERE to find out more about our full range of New XT Aluminium profiles.

Our Products

EAR1140

EAR1140

Ramp back with 60mm tread & 35mm riser.

EAR3130

EAR3130

Ramp back with 50mm tread & 22mm riser.

EAR3150

EAR3150

Ramp back with 77mm tread & 35mm riser.

ELA7240

ELA7240

3mm gauge with 101mm tread & 58mm riser.

ELA1140

ELA1140

4mm gauge with 50mm tread & 35mm riser.

ELA115550

ELA115550

4mm gauge with 60mm tread & 55mm riser.

ELA1240

ELA1240

4mm gauge with 96mm tread & 35mm riser.

ELA5140

ELA5140

4mm gauge with 50mm tread & 35mm riser.

ELA515550

ELA515550

4mm gauge with 60mm tread & 55mm riser.

ELA5240

ELA5240

4mm gauge with 97mm tread & 35mm riser.

ELA3140

ELA3140

4mm gauge with 53mm tread & 35mm riser.

ELA3240

ELA3240

4mm gauge with 99mm tread & 35mm riser.

ELA8150

ELA8150

4mm gauge with 55mm tread & 40mm riser.

ELA11750

ELA11750

6mm gauge with 64mm tread & 40mm riser.

ELA12740

ELA12740

6mm gauge with 96mm tread & 35mm riser.

ELA51750

ELA51750

6mm gauge with 64mm tread & 40mm riser.

ELA91150

ELA91150

10mm gauge with 69mm tread & 40mm riser.

ELA93150

10mm gauge with 72mm tread & 42mm riser.
