EAR3150

Click on image to enlarge

‹

›

EAR3150 stair edging (nosing) comprises an aluminium channel with insert material. It can be used in conjunction with floorcoverings from all major manufacturers and is suitable for all commercial and most industrial applications.

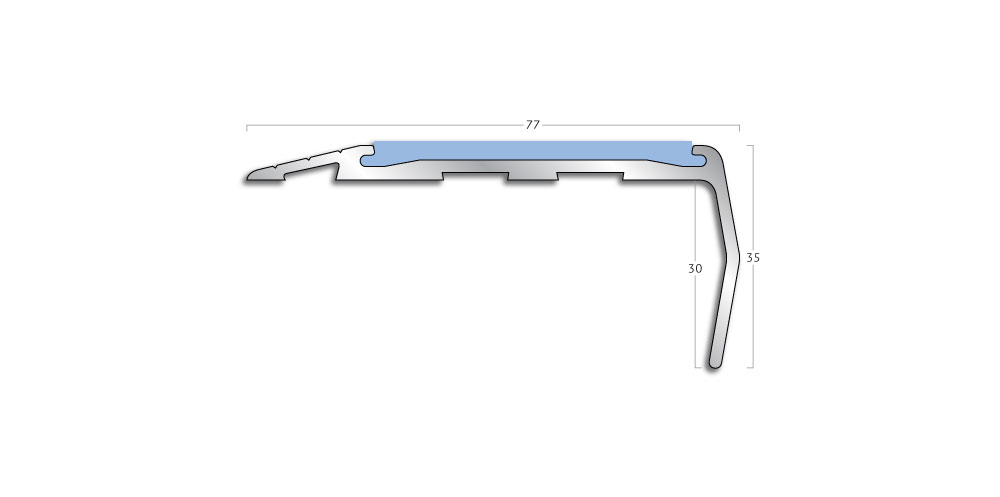

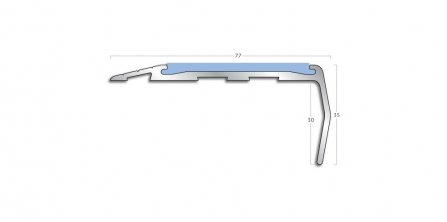

This kinked face, single channel, ramp back profile features a 77mm tread and 35mm riser, ideal for use where there are no surface floorcoverings or with resilient flooring. When used with resilient flooring EAR3150 should be installed on top of the floorcovering.

The ELINS50 insert is supplied separately from the channel for on-site fitting. This conceals the fixings, eliminating the need for screw head cover plugs. ELINS50 insert should be specified separately.

Supplied in mill finish aluminium as standard. Anodised, polished or chromed options also available upon request.

Have you considered our XT Aluminium range? Featuring an extended insert design that provides maximum safety underfoot and a unique insert locking mechanism for improved performance, our XT range is The Ultimate Stair Edging solution for reducing the risk of slips, trips and falls on stairs. Our suggested XT alternative is the ASXT20 or AKXT50A.
