ELA51750 stair edging (nosing) comprises an aluminium channel with insert material. It can be used in conjunction with floorcoverings from all major manufacturers and is suitable for all commercial and most industrial applications.

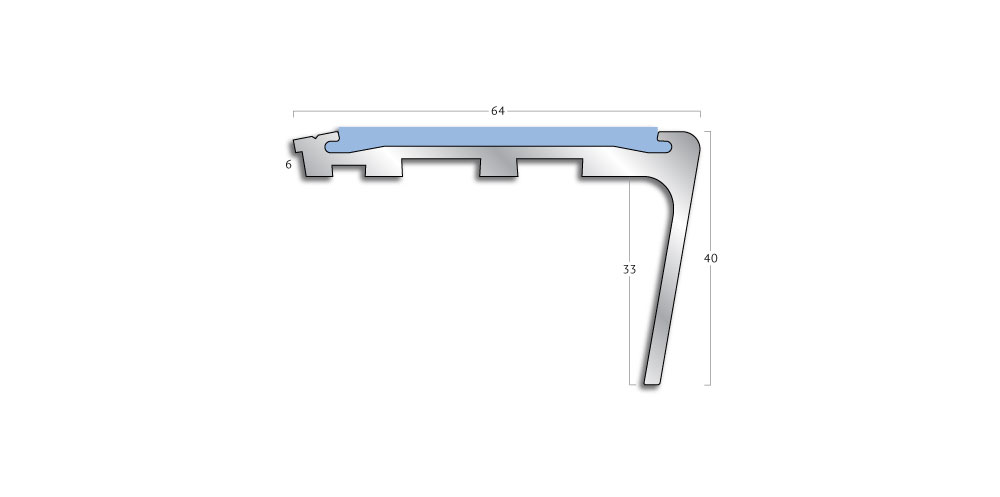

This rake back, single channel profile featuring a 64mm tread and 40mm riser, with a 4mm gauge ideal for use with carpet, LVT or resilient flooring with bevelled underlay in heavy used areas.

The ELINS50 insert is supplied separately from the channel for on-site fitting. This conceals the fixings, eliminating the need for screw head cover plugs. ELINS50 insert should be specified separately.

Supplied in mill finish aluminium as standard. Anodised, polished or chromed options also available upon request.

Have you considered our XT Aluminium range? Featuring an extended insert design that provides maximum safety underfoot and a unique insert locking mechanism for improved performance, our XT range is The Ultimate Stair Edging solution for reducing the risk of slips, trips and falls on stairs. Our suggested XT alternative is the GXT51.
