HT47/HXT47

HT47/HXT47
Magnifying lens Click on image to enlarge

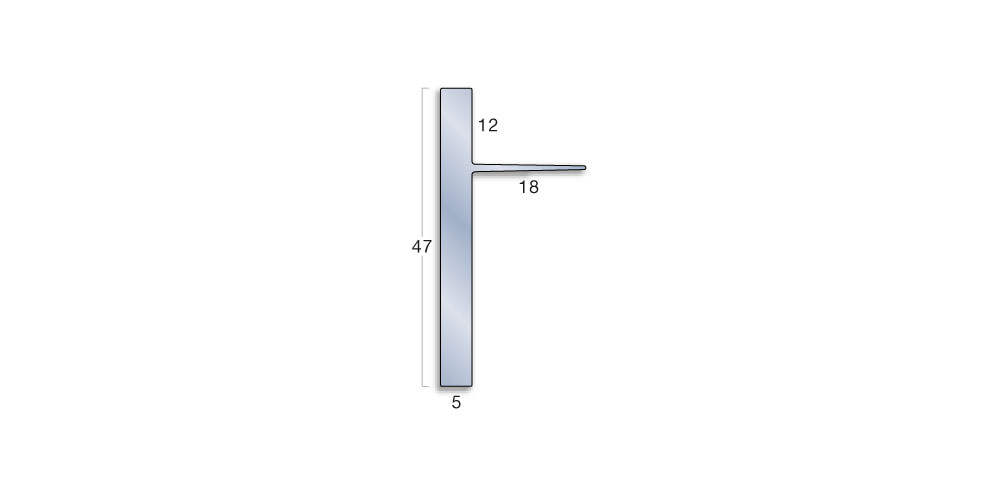

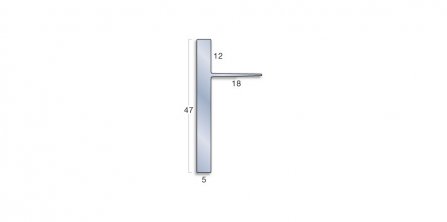

HT47 is a PVC-u side trim with a 12mm gauge for use in conjunction with selected XT stair edgings (R95XT11 and R95XT51) to form a neat and attractive edge around the open end of a step by concealing the edge of the floorcovering and stair edging.

HT47 features a fixed flange that holds the side trim in place.

HT47 can be supplied in lengths of 2.75m or as HXT47 pre-welded corners with a 10mm radius to complement the curved edge design of the PVC-u XT range of stair edgings.

HT47 & HXT47welded corners are available stocked in 83° and 90° (size 355mm tread and 355mm riser). All other angles are non-stocked (78° to 90°) and are supplied 342mm on the tread and 228mm on the riser - left or right hand requirements should be stated at time of order.

Colours

  • Black
  • Ink
  • Brown
  • Bluebell
  • Granite
  • Dove
  • Glacier
  • Canvas
  • Buttercup
  • Snowdrift
  • Clay
  • Sky
  • Jade
  • Wisp
Magnifying lens Click on colour to enlarge
