Gradus two-piece PVC-u Aisle & Floor trims are designed for use as cable management systems alongside our LED Step Lighting range, or to illuminate floors, walkways, aisles, entrance and exit routes when combined with selected Gradus Lighting Systems.

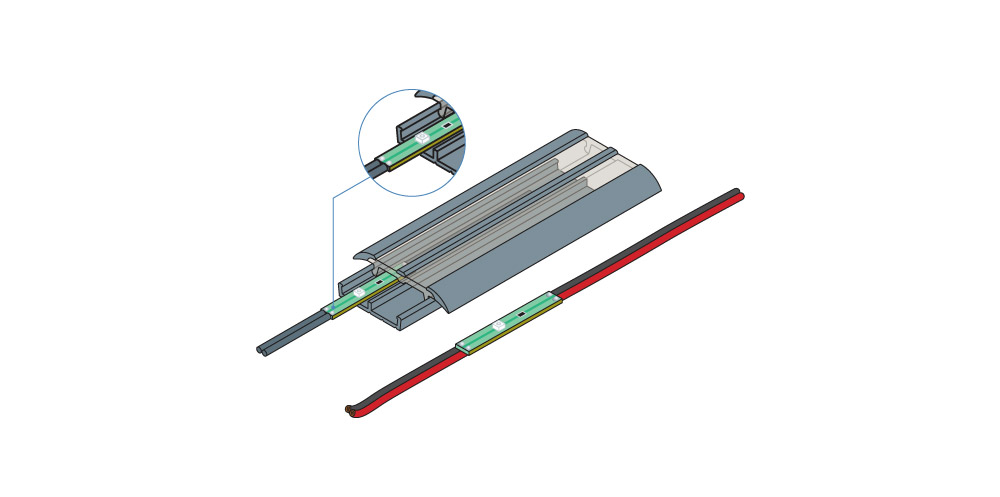

The two-piece profiles are supplied with a black PVC-u base and co-extruded PVC-u tops available with smoked or clear window(s) that allows the light to be projected through, whilst also providing additional slip-resistance.

Profile configurations are available to suit three types of applications:

  • Carpet to Carpet – provide a safe and neat transition between carpets of same height
  • Carpet to Wall – helps to prevent dirt and debris collecting around the edges of the auditoria
  • Carpet to Vinyl – provide a safe and neat transition between floorcoverings of different heights.

Note When fitted, the compressed thickness of the carpet should always be a tight fit to the internal gauge of the profile.

Profiles can be combined with Gradus Interlok Advance or Loom LED lighting systems, and in some cases Gradus Continuity LED lighting system too (see individual profile pages for availability), all of which are available with the following LED colours: Warm White, White, Red, Blue, Green or Amber.

  • Gradus Interlok Advance – offers a pin point lighting effect at either 50mm or 100mm spacing
  • Gradus Loom – features pin point lighting effect with LEDs spaced at 300mm.
  • Gradus Continuity – creates a continuous linear lighting effect.

If you have a project that could benefit from LED Lighting, please call 01625 428922 to discuss with a member of our team.

Request a call back > click here

Our Products

CL05/LB10

CL05/LB10

Carpet to carpet profile with 9mm gauge, intended for floor illumination only.

CLS13/LBS45

CLS13/LBS45

Carpet to carpet profile with 5mm gauge, intended for floor illumination and cable management.

CLC13/TDB45

CLC13/TDB45

Carpet to carpet profile with 7.5mm gauge, intended for floor illumination and cable management.

CLS16/LBS45

CLS16/LBS45

Carpet to wall profile with 5mm gauge, intended for floor illumination and cable management.

CLC16/TDB45

CLC16/TDB45

Carpet to wall profile with 7.5mm gauge, intended for floor illumination and cable management.

CLS20/LBS45

CLS20/LBS45

Vinyl to carpet profile with 5mm gauge, intended for floor illumination and cable management.

CLC20/TDB45

CLC20/TDB45

Vinyl to carpet profile with 7.5mm gauge, intended for floor illumination and cable management.

CLC11/TDB45D

CLC11/TDB45D

Carpet to vinyl profile with 12mm gauge, intended for floor illumination and cable management.
