CHR160 Combination Rail

CHR160 Combination Rail
Magnifying lens Click on image to enlarge



The Gradus CHR160 combination rail combines a handrail and a wall guard element in a single profile providing protection against impact from wheeled traffic whilst offering a comfortable grip to give reassuring pedestrian support and guidance.

The CHR160 combination rail is suitable for use in a wide range of environments including healthcare, education and transport.

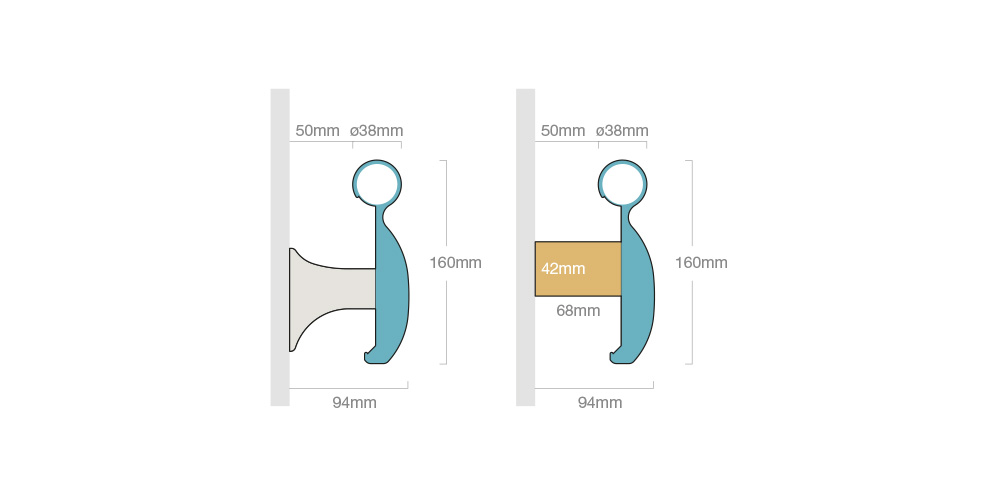

The CHR160 is a modular system comprising an aluminium retainer, PVC-u cover and PVC-u accessories including returns, inside and outside corners and brackets (an anti-ligature retainer option is also available - see drawing above right). The easy-to-clean PVC-u covers and accessories are through-coloured and textured to conceal the effects of impact and abrasion and can be replaced in the event of damage caused by impact. The accessories feature closed slots to ensure they remain in place in the event of impact and are supplied with black reveals in an anti-bacterial finish to provide neat, smooth joints.

The handrail element of the CHR160 features a 38mm diameter and incorporates a thumb groove to offer a comfortable grip in line with guidance, whilst the PVC-u covers and accessories are available in 32 colour options to allow visual contrast to be achieved (note: the CHR1603 mounting bracket is supplied in the colour 002 Gravel only).

Gradus BIM LogoBIM objects provide up-to-date, accurate product data. Gradus CHR160 is available as a BIM object - click here to download.

Note: Handrails and combination rails need to be easily identified and located for support and wayfinding and should be selected in a colour that has a Light Reflectance Value (LRV) that is 30 points different from the surrounding surface. All Gradus handrail colours have been measured to provide LRVs in order to provide the specifier with the information required to ensure a suitable visual contrast is achieved.

Colours

  • 001 Chalk
  • 002 Gravel
  • 003 Clay
  • 004 Granite
  • 005 Shale
  • 006 Ivory
  • 007 Wicker
  • 008 Sand
  • 009 Sienna
  • 010 Bark
  • 011 Pebble
  • 013 Greige
  • 014 Cinnamon
  • 015 Lavender Grey
  • 016 Glacier
  • 017 Bluebell
  • 018 Azure
  • 019 Ultramarine
  • 020 Denim
  • 021 Straw
  • 022 Apricot
  • 023 Meadow
  • 024 Bamboo
  • 025 Emerald
  • 027 Melon
  • 028 Poppy
  • 029 Garnet
  • 030 Iris
  • 031 Alum
  • 032 Flint
  • 033 Slate
  • 035 Hessian
Magnifying lens Click on colour to enlarge
