TAXT5212

TAXT5212
Magnifying lens Click on image to enlarge

TAXT5212 is an aluminium side trim for use in conjunction with CXT stair edgings to form a neat and attractive edge around the open end of a step by concealing the edge of the floorcovering and stair edging.

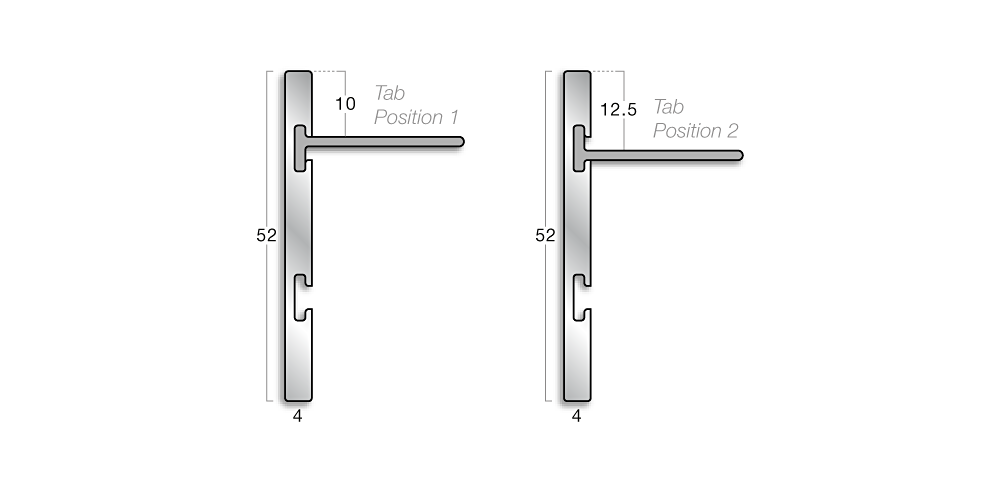

It can be supplied in 7 finishes to match the available XT stair edging channel options and utilises aluminium TC3 clips that slide on to the profile using the locating grooves to form the flange. The clips provide a gauge of either 10.5mm or 12.5mm to work specifically with Gradus CXT1 and CXT2 stair edgings. The TC3 clips are reversible and can be slid on to the profile in two positions to provide the correct height.

The TC3 fixing clips (tabs) remain in place once the side trim has been installed.

TAXT5212 can be supplied as pre-welded corners or in lengths of 2.75m (*maximum length restrictions may apply, subject to chosen finish – contact Gradus for details).

Pre-formed welded corners feature a rounded radius to complement the curved edge design of the CXT stair edgings. Welded corners are supplied 380mm on the tread and 254mm on the riser - left or right hand requirements should be stated at time of order.

TC3 clips (3 x 50mm) are supplied per welded corner. Packs of 10 TC3 clips can be purchased for stock lengths.

Colours

  • Aluminium
  • Black Anodised
  • Antique Brass
  • Antique Bronze
  • Brushed Stainless Steel
  • Polished Chrome
  • Satin Chrome
Magnifying lens Click on colour to enlarge
