Esplanade 9000 Matting - 12mm Open Construction - Double Wiper

Esplanade 9000 Matting - 12mm Open Construction - Double Wiper
Magnifying lens Click on image to enlarge


Gradus Esplanade 9000 primary entrance barrier mat is constructed from rubber wipers and aluminium scraper linking strips which are held together with galvanised steel wires.

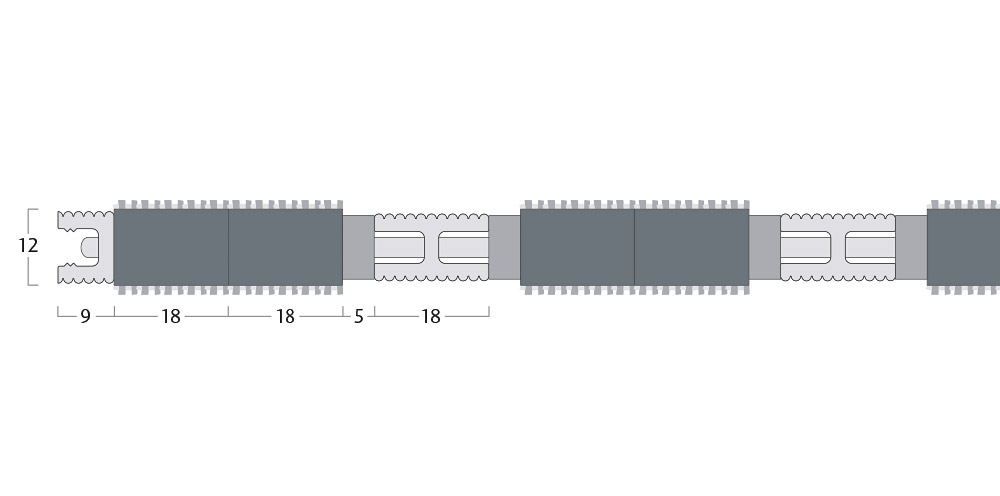

This option of Gradus Esplanade 9000 is 12mm thick and features an open construction with double wipers which are available either plain or interwoven with grey polyester fibres. The grey wipers are suitable for interior use whilst the plain wipers are designed for use in exterior applications (scraper action only).

The double wiper configuration offers high dirt and moisture removal whilst the open construction incorporates spaces allowing dirt and moisture to fall through in to the matwell below. The mat can be lifted intermittently to remove the debris as well as for deep cleaning the mat itself.

It is suitable for heavy foot traffic and severe wheeled traffic areas and has been independently tested to withstand a weight of 250kg per wheel (1000kg over 4 wheels) to a minimum of 30,000 passes. It has also been tested for flammability (BSEN 13501-1 Class Cfl-s2) and slip resistance (HSL ramp test - low risk of slip).

Esplanade 9000 is ideal for use in applications such as airports, railway stations and supermarkets.

Esplanade 9000 has a 10 year manufacturing and materials defects warranty (subject to terms and conditions - contact Gradus for further details).

Can be manufactured to most shapes on approval of a template.


  • Mill Finish Aluminium Linking Strips
  • Grey Polyester Wipers - Interior Use
  • Plain Wipers - Exterior Use
Magnifying lens Click on colour to enlarge
