SSCG5090 Stainless Steel Corner Guard
Click on image to enlarge
Gradus stainless steel corner guards are ideal for protecting one of the most vulnerable parts of a building from damage caused by everyday wheeled and pedestrian traffic. They are ideal for reducing maintenance costs and maintaining interior appearances and can be combined with other Gradus protection products to provide a complete solution.

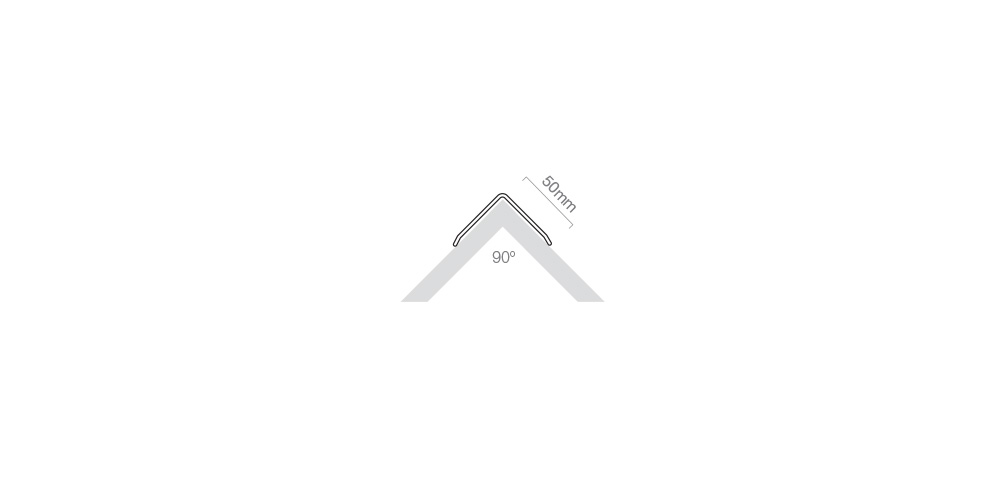

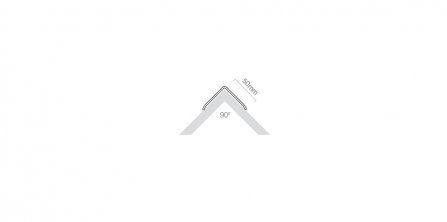

The Gradus SSCG5090 corner guard is a one-piece, surface mount corner guard that provides hygienic, durable protection for interior applications such as kitchens, canteens and laboratories. It is produced from 304 Grade Stainless Steel and is supplied in a Satin finish to minimise the appearance of impact and abrasion. It features a 50mm wing and a 90° angle and is available in 2 height options.
The SSCG5090 corner guard can be supplied pre-drilled for mechanical fixing (SSCG5090D) or un-drilled for fixing with a suitable adhesive (SSCG5090U).
The corner guards are drilled for No 6 countersunk woodscrews. The holes are 15mm from the top and bottom edge and 15mm in from the sides, 4 holes per corner guard.
Colours
Click on colour to enlarge
